Description

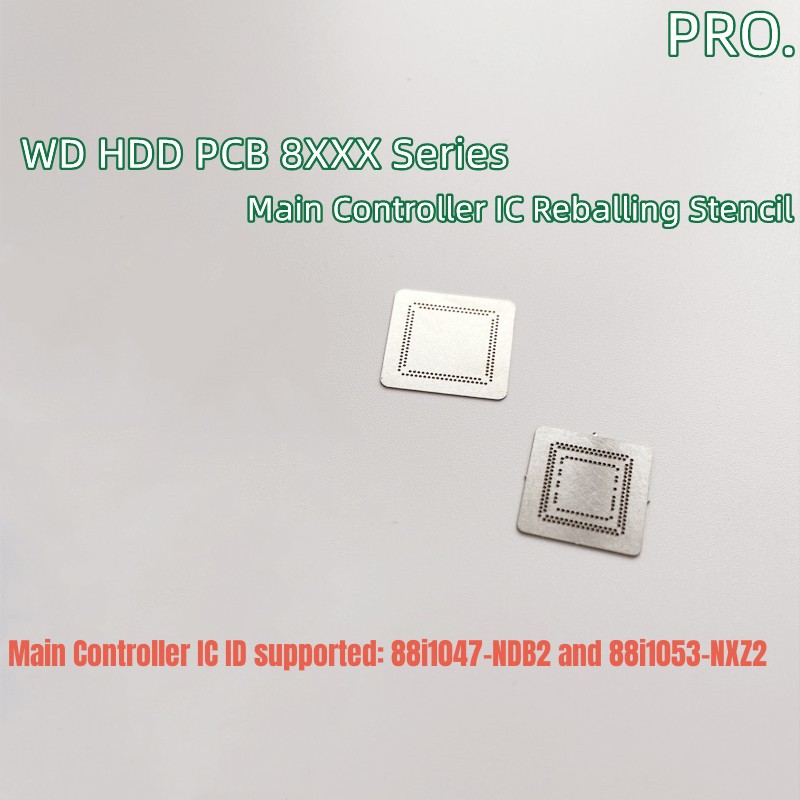

WD HDD PCB 8XXX Series Main Controller IC Reballing Stencil Package is available worldwide by DHL express! This package contains two Main Controller IC reballing stencils.
Main Controller IC ID supported: 88i1047-NDB2 and 88i1053-NXZ2
WD HDD PCBs with the same 88i1047-NDB2 Main Controller IC:
800022
800041
WD HDD PCBs with the same 88i1053-NXZ2 Main Controller IC:
800066
800067
800069
810030
810033
810035
810067
For WD SMR HDDs, they usually have firmware lock and SED V2 lock issue. To unlock the firmware area, users can use firmware unlock PCB. To fix the SED V2 issue, users can use the following methods:
1, Solder wires on original USB PCB;
2, Use HDD USB-SATA wiring PCB;
3, Use 2060-800041 Data Unlock SATA Connector;
Now we have another method: When the original PCB is physically damaged, users can only transfer the main controller IC to firmware unlock PCB to fix SED v2 issue.
Whenever users need to transfer the 88i1047-NDB2 and 88i1053-NXZ2 main controller IC to another PCB, this reballing stencil package is very helpful.
Users can watch the video on how to use Main Controller IC Reballing Stencil here
