Description
To recover lost data from Samsung USB hard drives, it is necessary to convert the USB interface to SATA and then connect to professional Samsung firmware repair hardware for firmware repair or connect to professional data recovery hardware for disk image or file extraction.
The USB to SATA conversion is very common step when the Samsung USB patient HDDs have firmware failure or weak heads or many bad sectors. The USB to SATA conversion can be done by manual soldering and wiring but most people select easier method-PCB swap with compatible SATA PCBs.

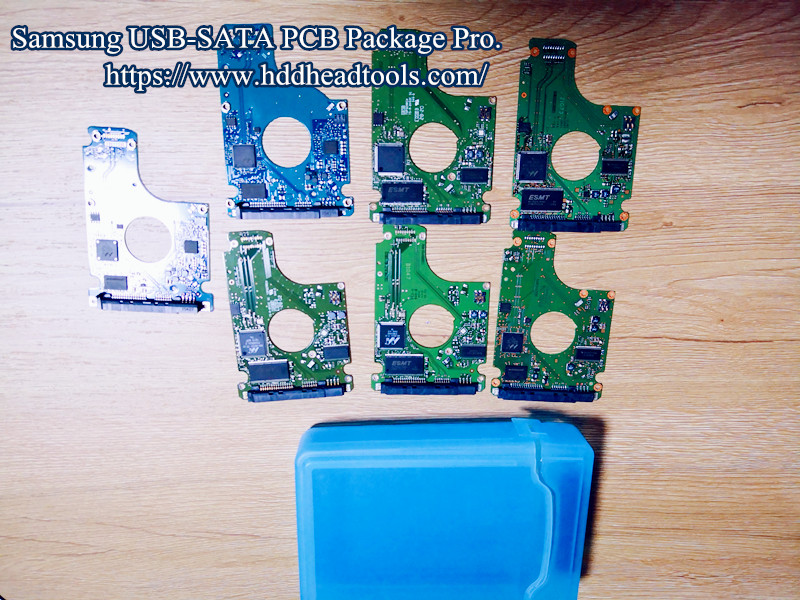

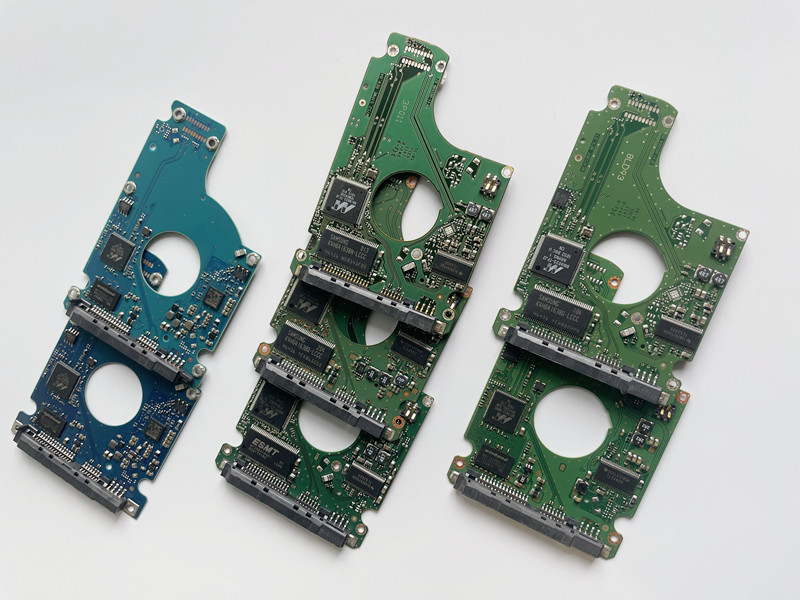

Samsung HDD USB-SATA PCB Package Pro. contains a package of Samsung SATA PCBs which are compatible with the following USB PCB numbers: BF41-00373A/BF41-00365A, BF41-00325A/BF41-00357A/BF41-00311A, BF41-00300A, BF41-00282A, 100725482/100760718, 100740633/100732076
Please note: Users will receive a package of Samsung SATA PCBs of different PCB numbers from above USB PCB numbers.
Please note: When users swap the PCB, users must transfer the original ROM from patient HDD to compatible SATA PCB. Users can swap ROM chip or users can read and write the ROM by flash programmer or users can read and write rom with Samsung hdd firmware repair tools, one easier solution for Samsung HDD ROM read and write will be the latest HDD ROM chip pin reader set which enable users to read and write the ROM without soldering the ROM chip off.
Users will get detailed compatible list after the purchase for all the SATA PCBs users will get.
