Description

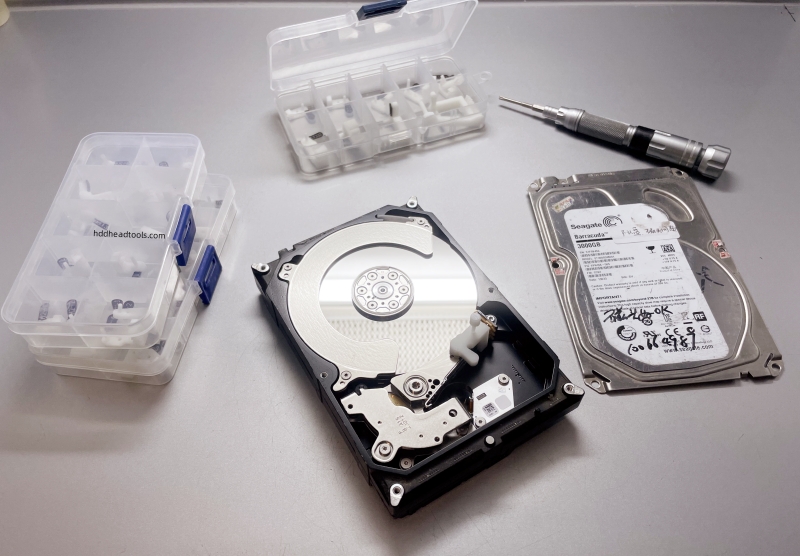

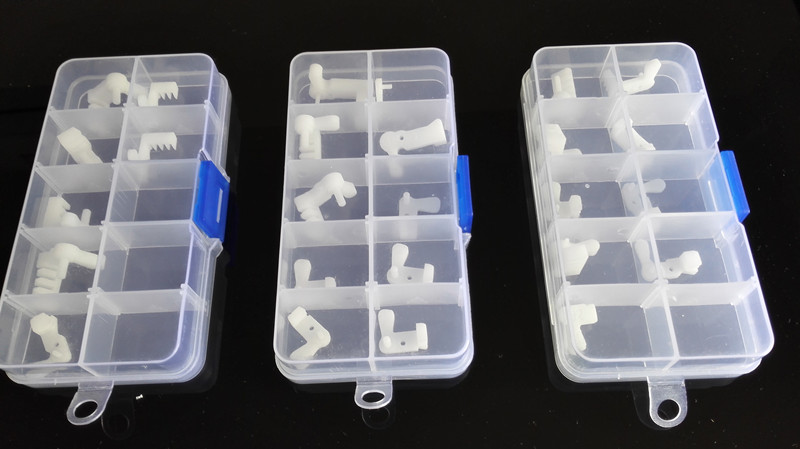

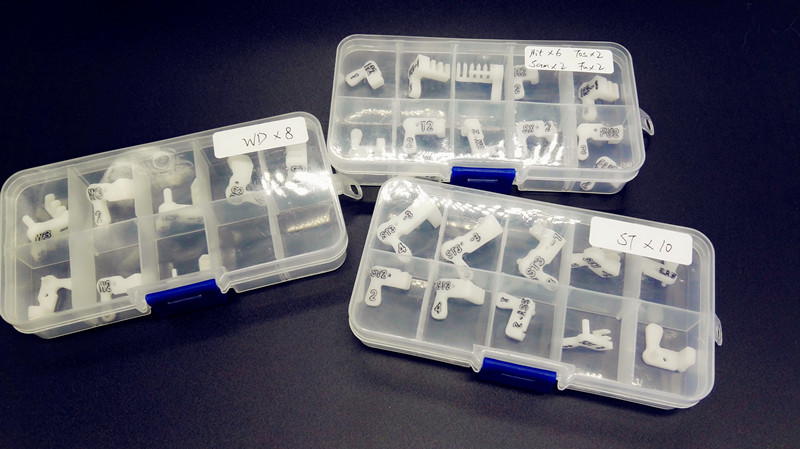

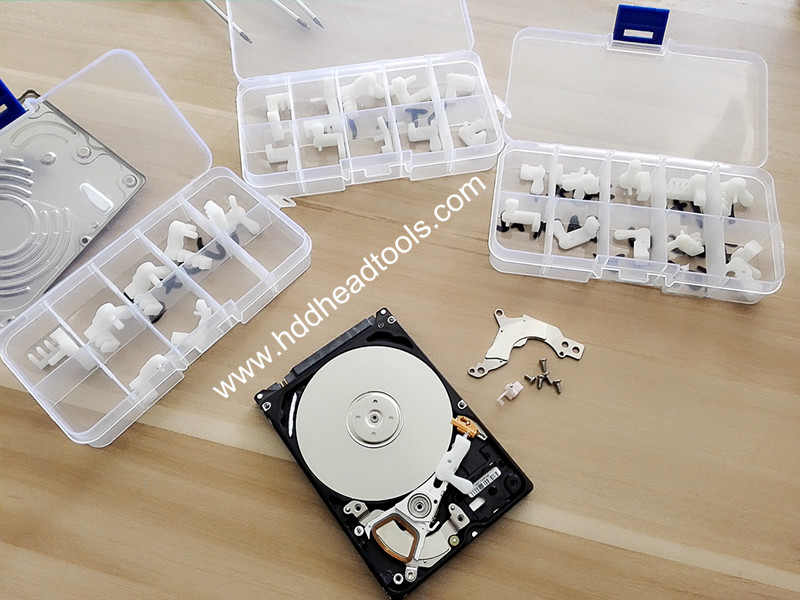

G2(Generation 2) HDD Head Comb Suite.Standard has totally 57 pieces of different head combs, 1 piece of each head comb. If users want to have two of each, users need to buy G2 HDD Head Comb Suite.Advanced.
G2 HDD Head Comb Suite is one universal and professional head comb suite supporting head replacement of Seagate, Western Digital, Hitachi, Samsung, Toshiba and Fujitsu hard drives. This head comb suite is specially for hdds whose heads park on a ramp.
Newly added head replacement tool on Dec. 17, 2024
ST331: 1 platter, ST1000DM003, parking on external parking ramp;
ST6E: ST8000NM0055, 6 platters;
W3S1: WD 810011, 2T, 1 platter;
W3S3: WD 810011, 3 platters, 4T, 6T;
W38: WD120EDAZ, 8 platters, helium drives
Newly added head replacement tool on July 12, 2024
ST2-3 for ST2000LM005, Seagate Samsung HDD, 3 platters/6heads;
Newly added head replacement tool on June 27, 2024
STH82 for Seagate 12TB helium drives, ST12000NM0007
ST5E for Seagate 8TB helium drives ST8000NM000A
Newly added head replacement tool on March 17, 2024
STH81 for Seagate 10TB helium drives, ST10000NM0478, 8 platters, 16 heads
STH9 for Seagate 14TB 16TB helium drives, 9 platters, 18 heads
Newly added head replacement combs Jan.3rd, 2024:
T3-7: Toshiba desktop hdd, 7 platters, MG06ACA800E, 8TB;
W3-9: WD helium hdd of 10T-16T, 9 platters;
ST3-4: Seagate ST8000NM0178, 8TB, 4 platters;
ST3-5: Seagate ST4000NM0035, 4TB, 5 platters;
SST24: Seagate SAS HDD, ST1800MM0129, 1.8T, ST2400MM0129, 2.4T;
Newly added Toshiba hdd head replacement tool on November 1 2023: T21, for laptop toshiba hdds with 1 platter, please note the existing T22 is used for 1-platter toshiba laptop hdds for many cases;
Newly added Western Digital Head Comb for WD 6T 800001 and 4T 810011 on Novemer 1 2023:
W3S, example supported models-WD60PURX-64T0ZY0; WD40EJRX-89AKWY0
Newly added Toshiba Head Combs July 14, 2023
T312: Toshiba 3.5″ HDDs, 1/2 platters, HDS721010CLA332
T3-3: Toshiba 3.5″ HDDs, 3 platters
DT01ACA100, DT01ACA200, DT01ACA300, DT01ABA100V, DT01ABA200V, DT01ABA300V, etc
Newly added WD Head Comb July 14, 2023
W3 5 S: Western Digital desktop hard drive, 5 platters, WD4002FYYZ
Newly added Head Comb Jan.11, 2022
W1S: For WD SMR Palmer HDD 800066 800069 1 platter 2 heads
Newly added Head Comb April 1st, 2021
W2 S: Western Digtial 2.5″ HDDs, 2 platters, for WD 800065, 800067, 810003 charger hard drives;
Newly added Head comb December 18th, 2018:
ST3 6: Seagate 3.5″ 8TB hard drives with 6 platters and 12 heads
Newly added Head Comb Jan.13, 2018
WD2 5: WD new 2.5″ hard drives of WD40NMZW, WD30NMVW 5 platters 10 heads
T2 4: Toshiba new 2.5″ hard drives with 4 platters and 8 heads.
Newly added Head comb November 13, 2017:
ST ES3-5: Seagate enterprise 3.5″ hard drives, 1-5 platters supported and the ES.3 1-3T hard drives are tested.
Newly added Head combs August 16, 2017:
ST 2 5: Seagate 4TB laptop HDD head comb, ST4000LM016, 5 platters, 10 heads
Newly added Head combs April 11, 2016:
W3 5: WD 6TB HDD head comb, 3.5″ HDDs, 5 platters 10 heads;
HUS2 2: 2.5″ Hitachi SAS hdds, 2 platters.
Newly added On Jan.27 2016 For Fujitsu SAS Laptop Hard Drive
FUS 2 2: Fujitsu SAS 2.5″ HDD, 2 platters, 4 heads （S26361-F4006-L114 ）
Newly added for Samsung Seagate Drive:
SX2 3: Seagate Samsung 2.5″ HDD, 3 platters, ST2000lm003 2tb laptop drive;
Newly Added For Seagate SAS 2.5 Drives
SST 2 1: SAS 2.5″ hdd, 1 platter;
SST 2 2: SAS 2.5″ hdd, 2 platters;
SST 2 3: SAS 2.5″ hdd, 3 platters
Seagate Hard Drive Head Combs:
ST2 4: Seagate 2.5″ HDDs, 4 platters
ST2 2: Seagate 2.5″ HDDs, 2 platters
ST2 1: Seagate 2.5″ HDDs, 1 platters
ST3-3 2: Seagate 3.5″ HDDs, 2 platters
ST3-3 4: Seagate 3.5″ HDDs, 4 platters
ST3-1 3: Seagate 3.5″ HDDs, 3 platters, type 1
ST3-2 3: Seagate 3.5″ HDDs, 3 platters, type 2
Western Digital Hard Drive Head Combs:
W3 4: Western Digital 3.5″ HDDs, 4 platters
W3-1 3: Western Digital 3.5″ HDDs, 3 platters, type 1
W3 3: Western Digital 3.5″ HDDs, 3 platters, type 2
W3 2: Western Digital 3.5″ HDDs, 2 platters
W2 4: Western Digital 2.5″ HDDs, 4 platters
W2 3: Western Digital 2.5″ HDDs, 3 platters
W2 2: Western Digital 2.5″ HDDs, 2 platters
Hitachi Hard Drive Head Combs:
H3-1 3: 3.5″ Hitachi HDDs, 3 platters
H3 5: 3.5″ Hitachi HDDs, 5 platters
H3-1 2: 3.5″ Hitachi HDDs, 2 platters
H2 2: 2.5″ Hitachi HDDs, 2 platters
H2 1: 2.5″ Hitachi HDDs, 1 platter
Toshiba Hard Drive Head Combs:
T2 2: Toshiba 2.5″ HDDs, 2 platters
T2 3: Toshiba 2.5″ HDDs, 3 platters
Fujitsu Hard Drive Head Combs:
FU2 2: Fujitsu Head Combs: 1 piece, Fujitsu 2.5″ hdds, 2 platters
Samsung Hard Drive Head Combs:
SX2 2: Samsung Head Combs: 1 piece, Samsubg 2.5″ hdds, 2 platters
Some new tested supported models:
ST5000LM000
ST4000LM024
ST4000LM016
ST3000LM024
ST3000LM016
ST2000LM005
ST2000LM003
ST1750LM000
ST500LM000
ST4000DM004
ST2000NM001
ST3000VX000
ST2000VX000
ST1000VX000
ST9750430AS
ST33000651AS
ST32000641AS
WD30NMZW
WD30NPZZ
WD30NMVW
WD30NMRW
WD40NMZW
WD5000LPCX
Video: G2 HDD Head Comb Suite Video Introduction
