Description

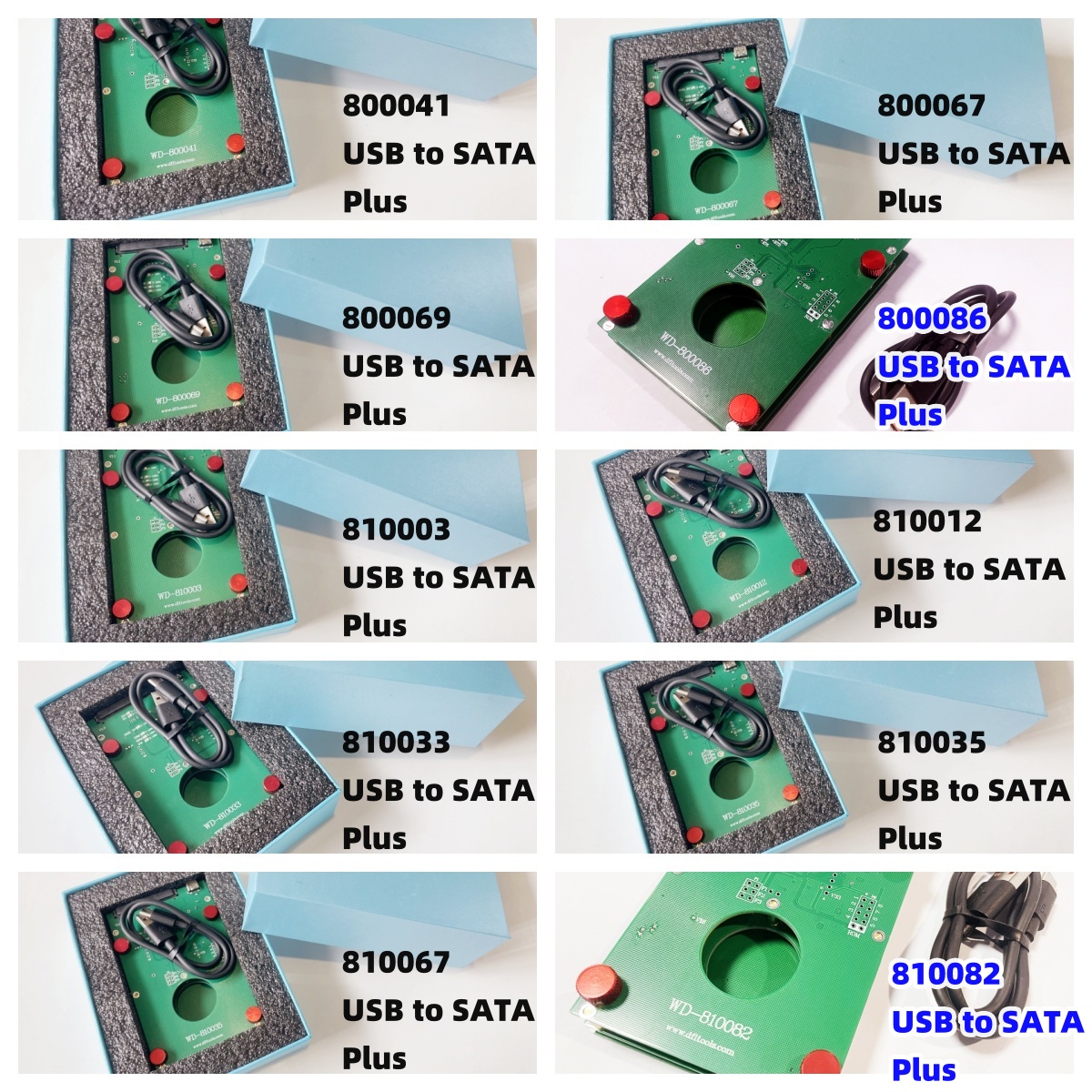

G3(Generation 3) WD SMR HDD USB to SATA Data Recovery Adapter Plus Package contains the following 10 USB to SATA adapters:
2060-800041 G3 USB to SATA adapter
2060-800067 G3 USB to SATA adapter
2060-800069 G3 USB to SATA adapter
2060-800086 G3 USB to SATA adapter
2060-810003 G3 USB to SATA adapter
2060-810012 G3 USB to SATA adapter
2060-810033 G3 USB to SATA adapter
2060-810035 G3 USB to SATA adapter
2060-810067 G3 USB to SATA adapter
2060-810082 G3 USB to SATA adapter
Besides above USB to SATA adapters, users get also the items below:
01: USB Type-C Cable;
02: Software to read/write above USB HDDs’ rom and adjust SATA data signals.
Wow Features of G3 WD SMR HDD USB-SATA Data Recovery Adapter Pro.
01: Super easy to install this G3 SATA adapter to the USB PCB;
02: Independent simple software to read rom, write rom directly without using flash programmer;
03: Buffer chip used and users can use the given simple software to adjust the SATA data signals to make firmware operations, disk image and file extraction faster and make data transfer more stable, this makes it possible to bypass the capacitors removal;
04: Power stabilizator is used;
05: ESD protection is adopted.
Steps to use G3 WD SMR HDD USB-SATA Data Recovery Adapter Pro.
01: Install G3 USB to SATA adapter;
02: Read original USB HDD ROM with G3 adapter software;
03: Generate unlock rom by DFL-WD firmware repair tool;
04: Write unlock rom with G3 adapter software;
05: Disable 411 and backup firmware modules, specially module 190;
06: Test firmware modules and repair corrupted firmware modules;
07: Image patient drive or extract lost data directly.
