Model: WD5000BMVW-11AMCS4 Head Swap Tips

Model: WD5000BMVW-11AMCS4

DCM: EAOT2HB

Capacity: 500GB

PCB: 2060-771820-000

2 Platters

3 Heads SPT: 1098

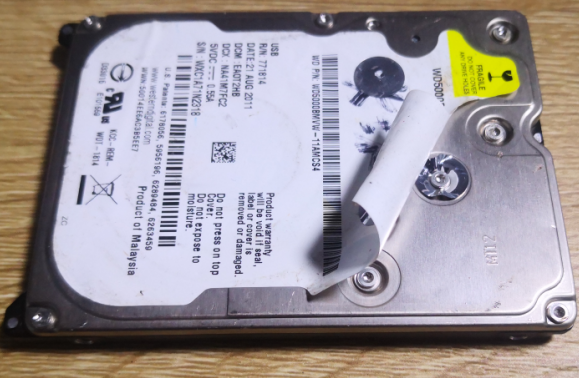

Please note: there’re 2 hidden screws behind the label

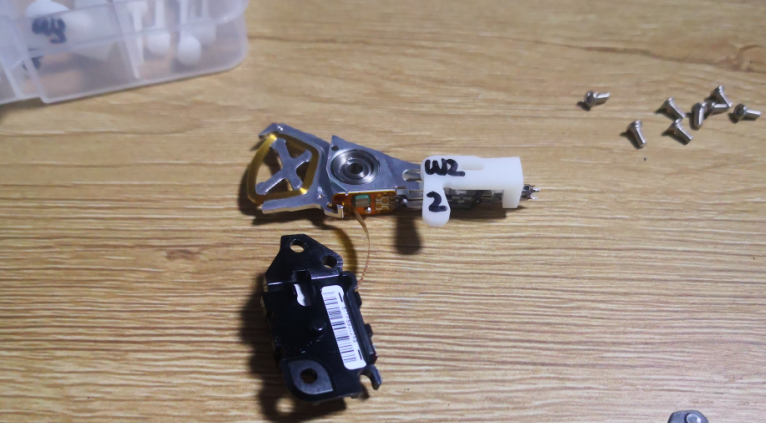

Head Comb Required: WD 2 2 from WD Head Comb Suite:
https://www.hddheadtools.com/product/western-digital-hdd-head-comb-suite/

Please note:

1, Whenever during the head swap operations, never touch the platter surface, never leave your finger prints;

2, When users are installing the head comb or removing the head comb, do it carefully, control the heads properly, don’t let it go freely to touch the platter surface.
